Description
TRAX ADV Aluminum case system

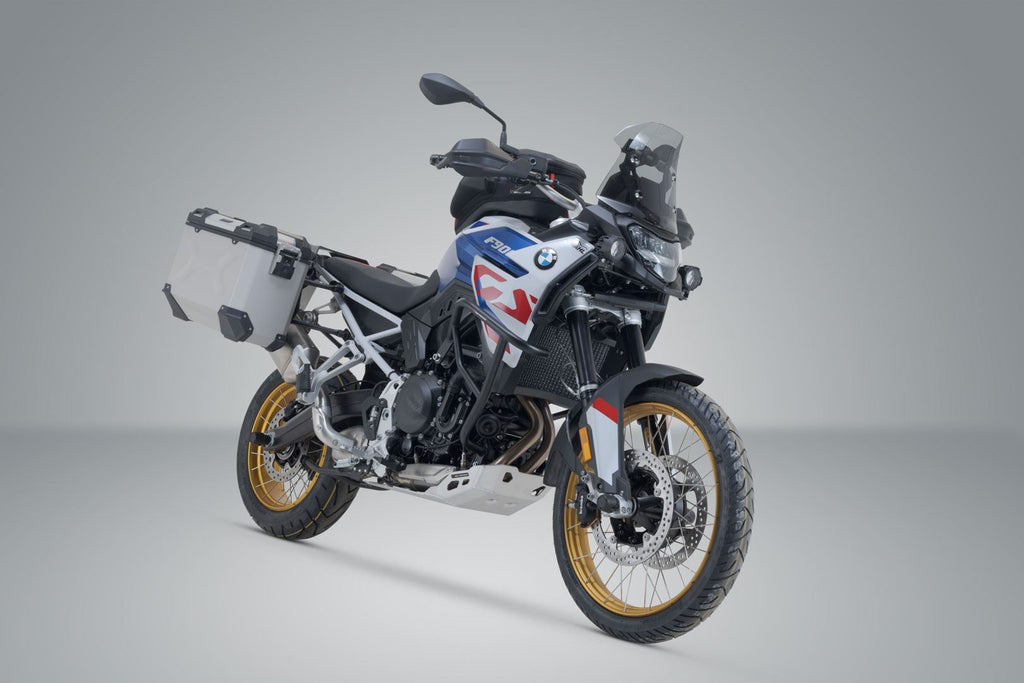

SW-MOTECH has designed the silver aluminium case system for the BMW F 900 GS with the extremely durable and bike-specific PRO side carriers.
TEST WINNER in the magazine MOTORRAD issue 05/2020. Test result: VERY GOOD

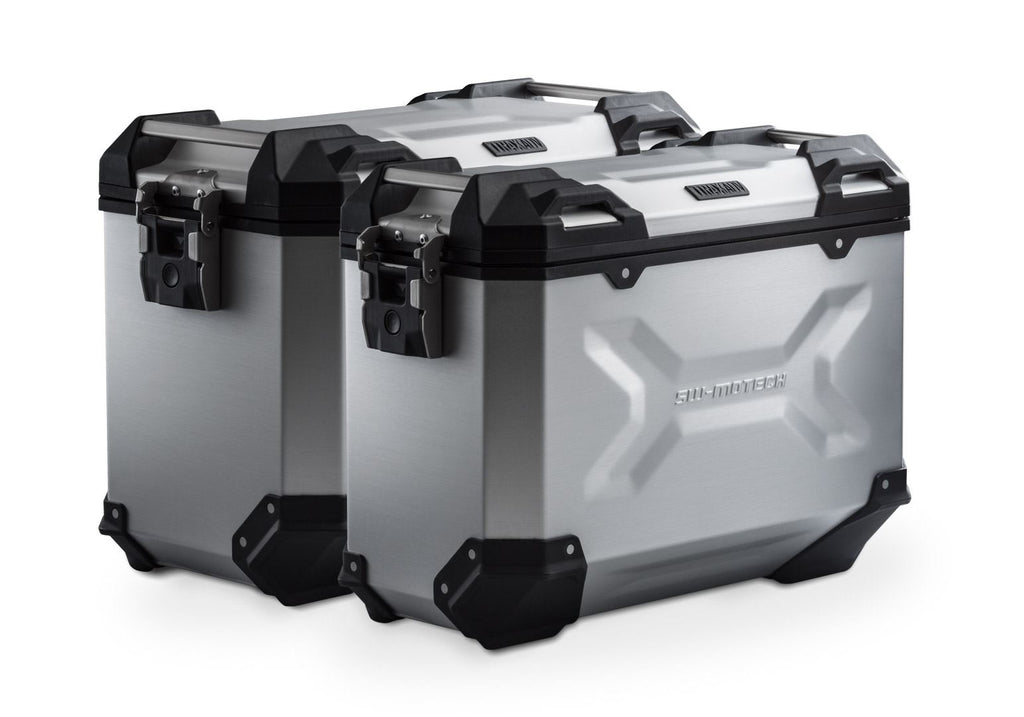

Durable TRAX ADV aluminum cases feel at home on any stretch of road: embossed patterns add stability to the 1.5 millimeter-thick, welded aluminum wall material. A completely removable lid with carrying handles made of anodized aluminum and quick release fasteners makes loading and unloading of motorcycle luggage easier; the beveled side edge provides high ground clearance when cornering. With this complete solution, you have all the components you need to travel with TRAX: two waterproof TRAX ADV side cases, two detachable SW-MOTECH side carriers, adapter kit, lock set, lid limiter and anti-theft protection at an attractive price.
The bike-specific carrier and the size of the cases are perfectly matched to the rear shape and exhaust system of the motorcycle. A motorcycle case without compromise: the development of the TRAX ADV focused on stability and impermeability against dust and water as well as simple handling. Whether on an off-road adventure, road trip or short haul, the premium aluminum case with a wall thickness of 1.5 millimeters will come out on top in any challenge.
-

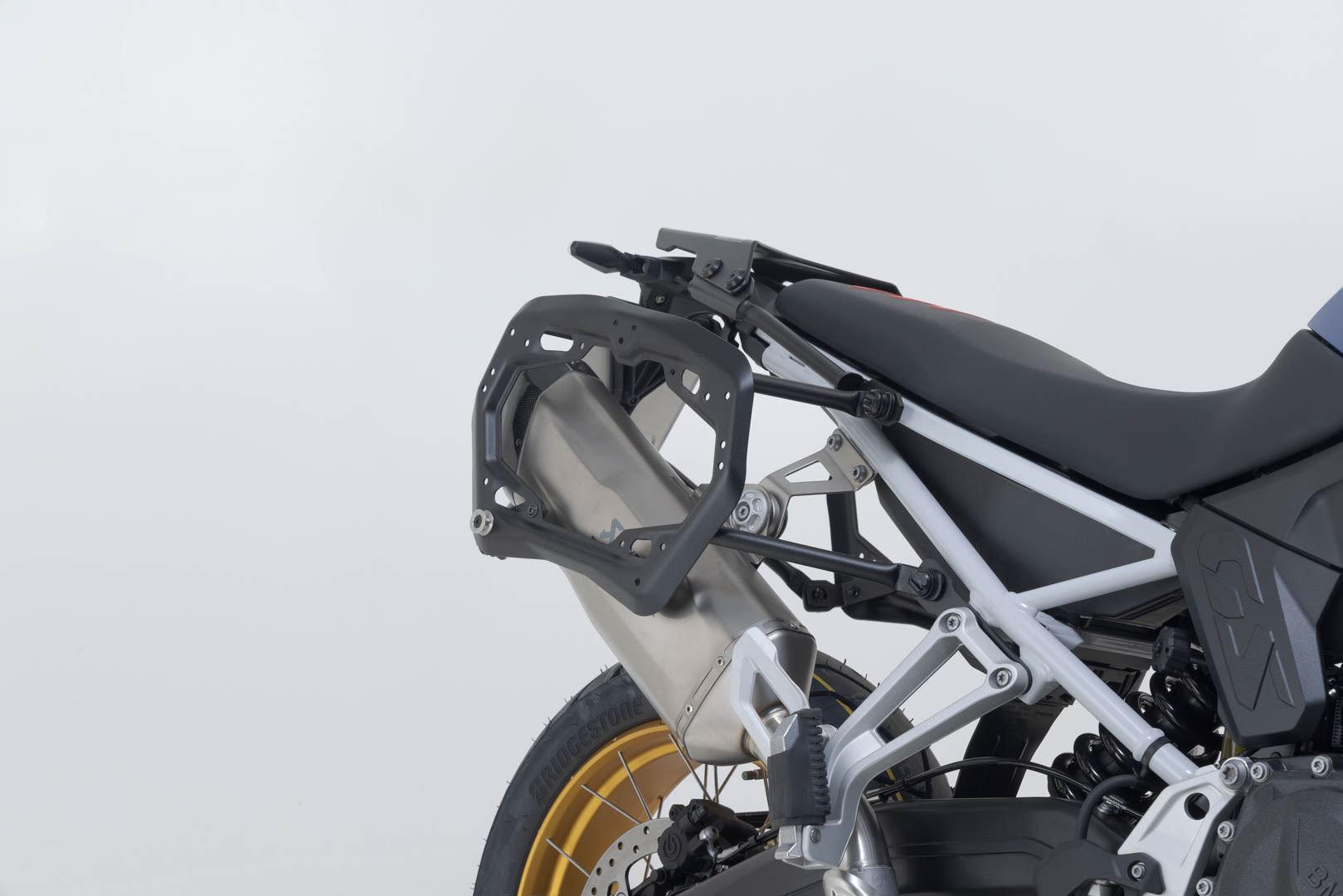

PRO Side carrier
- Extremely durable due to its optimized shape and 2.5 mm thick steel
- Perfect fit, designed to fit close to the bike
- Fully removable with newly developed, even more robust quick-release fasteners
- Optional anti-theft protection available
- For permanent mounting, quick-release fasteners can be replaced with standard parts (M8)
- Numerous functional bores, compatible with the RotopaX system among others
- Simple mounting on original mounting points
- Powerful corrosion protection thanks to powder coating
- Secure hold for TRAX, AERO and SysBags with adapter plate (SysBag 15, 30, WP L)
- Adapter kits for attaching cases from Givi/Kappa, Krauser and Shad are also available
Details
- Material: Steel
- Surface: powder coated
- Color: black
- Total Weight: appr. 5,4 kg / appr. 11.9 lb
Note
- Adapter kits are required for aluminum cases from SW-MOTECH and other manufacturers and also for AERO ABS side cases and SysBags with adapter plates (SysBag 15, 30, WP L).
-
Adapter kit for PRO side carrier
- Adapter kit for attaching a TRAX or NANUK side case to an SW-MOTECH PRO side carrier
- Mounted on to the existing holes of the SW-MOTECH PRO side carrier
- For left and right sides
Details
- Color: silver
- Total Weight: appr. 0,3 kg / appr. 0.7 lb
-
TRAX ADV L Aluminium case
- Model for the left side of the motorcycle
- Protection against oxidation and abrasion thanks to anodized finish
- Sturdy and watertight side case made from aluminium
- Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
- Robot-guided welding and self-piercing riveting prevent dampness from getting in

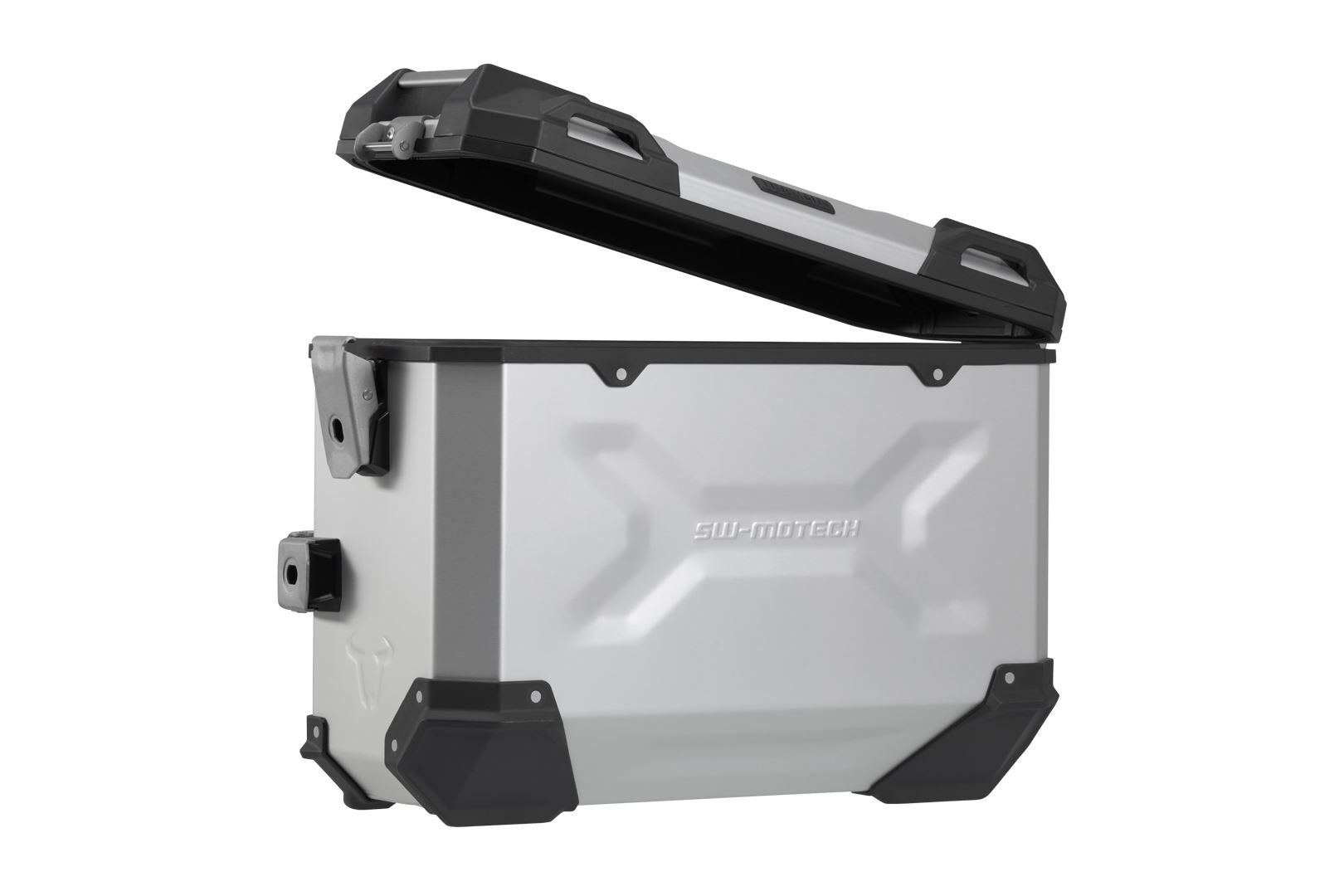

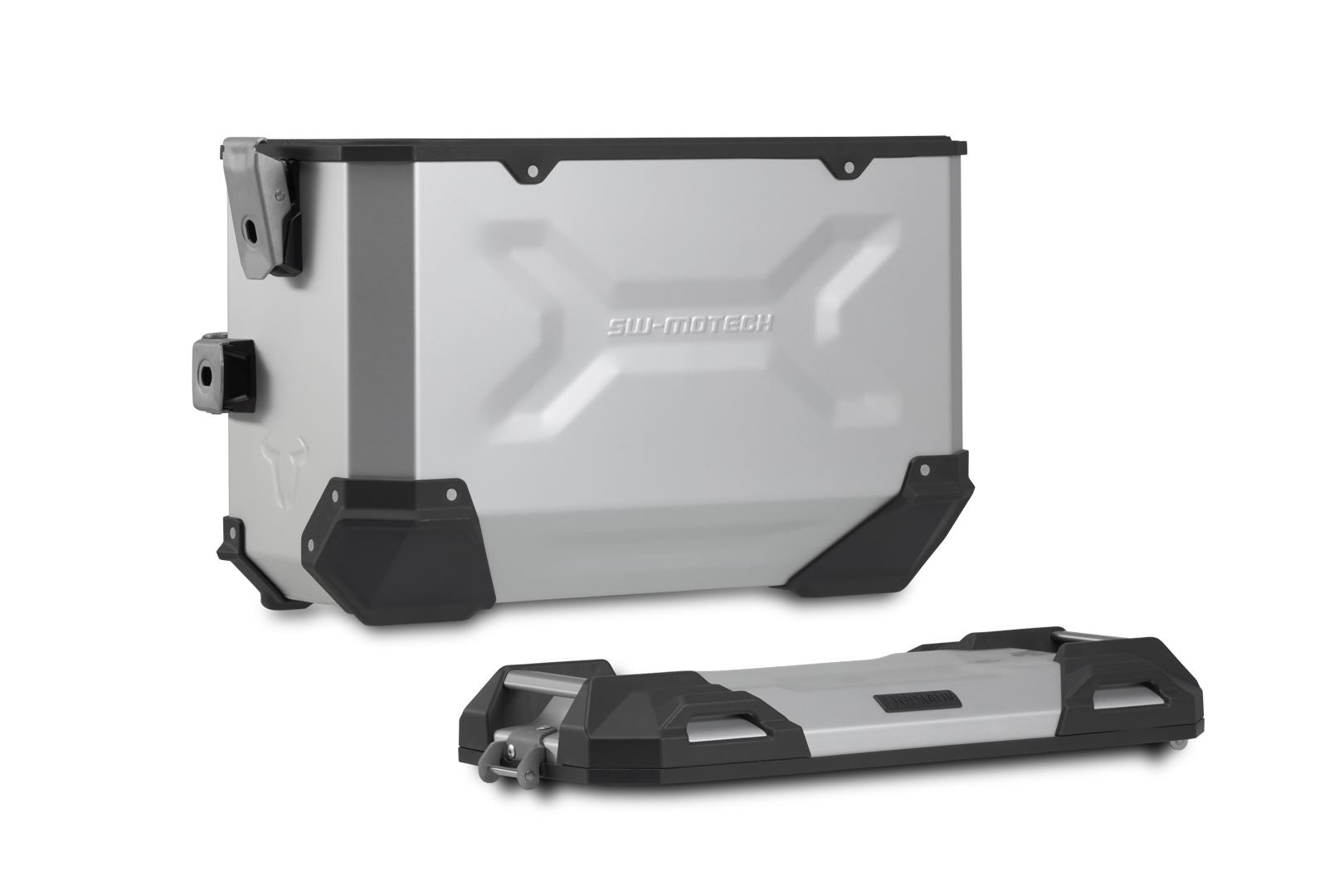

- Even when loaded, completely removable lid with quick-release fastener
- 4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
- High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
- Hinges made from stainless steel, handles made from anodized aluminum
- Lid limiters provide additional stability when using extra luggage on the lid
- Exchangeable cover gasket
- The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
- Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
- Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
- A lock set with 6 identical locks is available as an option and is not included in delivery
Details
- Material: Aluminum
- Material strength: 0,15 cm / 0.06 in
- Surface: anodized
- Color: silver
- Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in
- Total Weight: appr. 5,4 kg / appr. 11.9 lb
- Total Volume: 45,0 l
Note
- Also available as a TRAX ADV aluminum case system with 2 side cases, bike-specific side carriers, adapters and lock set.
Required for mounting
- Side carrier, adapter kit, TRAX lock set
-
TRAX ADV M Aluminium case
- Model for the right side of the motorcycle
- Protection against oxidation and abrasion thanks to anodized finish
- Sturdy and watertight side case made from aluminium
- Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
- Robot-guided welding and self-piercing riveting prevent dampness from getting in
- Even when loaded, completely removable lid with quick-release fastener
- 4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
- High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
- Hinges made from stainless steel, handles made from anodized aluminum
- Lid limiters provide additional stability when using extra luggage on the lid
- Exchangeable cover gasket
- The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
- Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
- Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
- A lock set with 6 identical locks is available as an option and is not included in delivery
Details
- Material: Aluminum
- Surface: anodized
- Color: silver
- Size: 49,0 x 23,0 x 37,0 cm / 19.3 x 9.1 x 14.6 in
- Total Weight: appr. 5,1 kg / appr. 11.2 lb
- Total Volume: 37,0 l
Note
- Also available as a TRAX ADV aluminum case system with 2 side cases, bike-specific side carriers, adapters and lock set.
Required for mounting
- Side carrier, adapter kit, TRAX lock set
-
TRAX lock set with PRO anti-theft protection
- 9 matching locks
- With anti-theft protection for PRO side carrier
- Compatible with side cases and top cases from the TRAX ADV and TRAX ION series
- One key for all locks
Details
- Color: black
- Total Weight: appr. 0,5 kg / appr. 1.0 lb
-
Multi-tool key chain attachment
- Multitool as practical key chain
- Quick-release fastener opener for EVO and PRO side carriers
- Hex key (14 mm) - ideal for many motorcycle mirrors
- Hex keys in four additional sizes (8, 10, 12, 13 mm)
- Bottle opener
- Key chain eyelet
- With laser-etched SW-MOTECH logo
Details
- Material: Stainless steel
- Surface: brushed
- Color: silver
- Total Weight: appr. 0,0 kg / appr. 0.1 lb
Included in delivery
- 1 x TRAX ADV L Aluminium case, 45,00 l, left, silver
- 1 x TRAX ADV M Aluminium case, 37,00 l, right, silver
- 2 x PRO Side carrier
- 2 x Adapter kit for PRO side carrier
- 1 x TRAX lock set with PRO anti-theft protection
- 1 x Multi-tool key chain attachment
- Mounting instructions
- Mounting material
Details
- Color: silver
- Total Weight: appr. 21,0 kg / appr. 46.2 lb
- Total Volume: 82,0 l
