Universal GPS kit with phone case

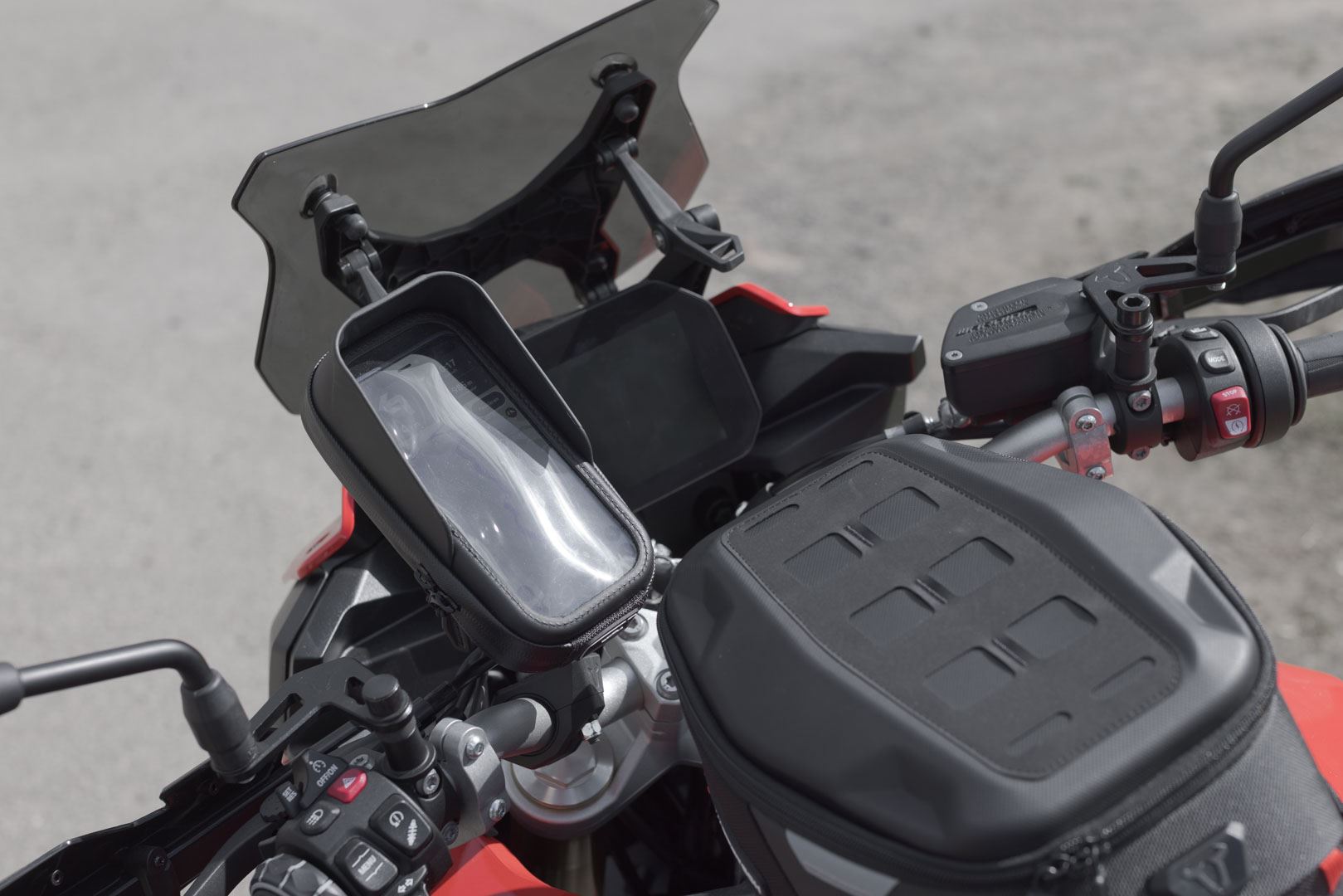

This all-round worry-free package includes a weatherproof Phone Case pouch and various mounting components. The T-Lock mount on the back of the Phone Case enables a quick mounting onto the Universal Navi kit: the Phone Case is secured to the socket arm with a simple quarter-turn in a clockwise direction.
Suitable for the following models:SamsungA10, A12, A20S, A20E, A21S, A30S, A31, A32, A50, A51, A40, A41, A42, A50, A51, A70, A71, A90, M11, M20, M21, M30S, M31, M31S, M51Galaxy SerieS5, S6, S6 Edge, S7, S7 Edge, S8, S8+, S9, S9+, S10, S10 Lite, S10e, S10+, S20, S20+, S20 FE, S20 Ultra, S21, S21+, S21 Ultra iPhone6, 6 Plus, 6S, 6S Plus, 7, 7 Plus, 8, 8 Plus, X, XR, XS, XS Max, 11, 11 Pro, 11 Pro Max, 12, 12 Mini, 12 Pro, 12 Pro Max, SE (2021)Xperia-SerieXA2, XA2 Ultra, XA2 Plus, XZ, XZ Premium, XZ1, XZ1 Compact, XZ2, XZ2 Compact, XZ2 Premium, XZ3 , L1, L2, L3, L4, 1, 1 II, 5, 5 II, 10, 10 II, 10 PlusHuaweiNova 5T, Mate Xs, Mate 20, Mate 20 X, Mate 20 lite, Mate 30, Mate 30 Pro, Mate 40 Pro, P smart, P smart+, P smart Z, P smart Pro, P30, P30 lite, P30 Pro, P40, P40 lite, P40 lite E, P40 Pro, P40 Pro+, Y5, Y5p, Y6, Y6p, Y6s, Y7XiaomiMi 11, Redmi Note 8 Pro

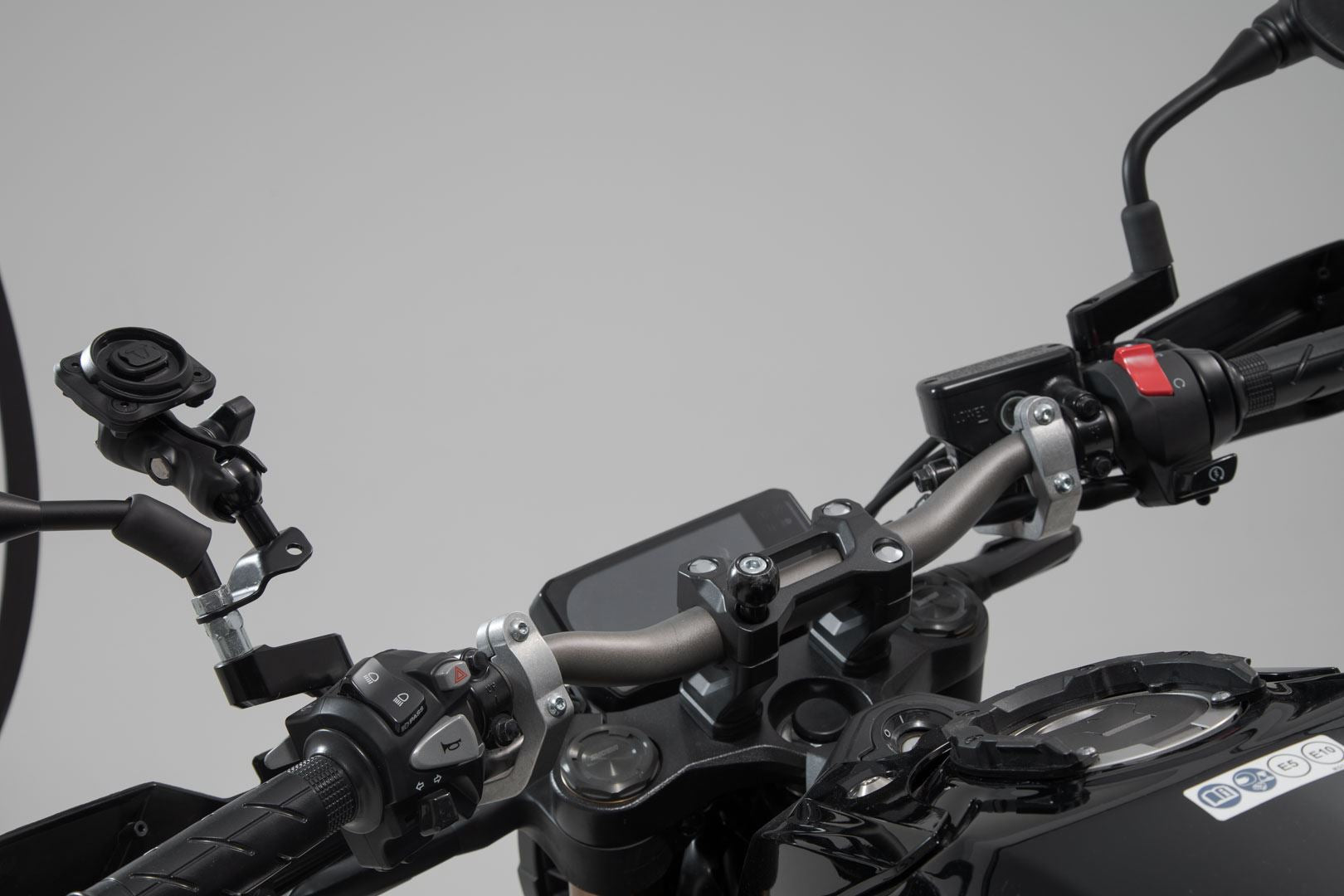

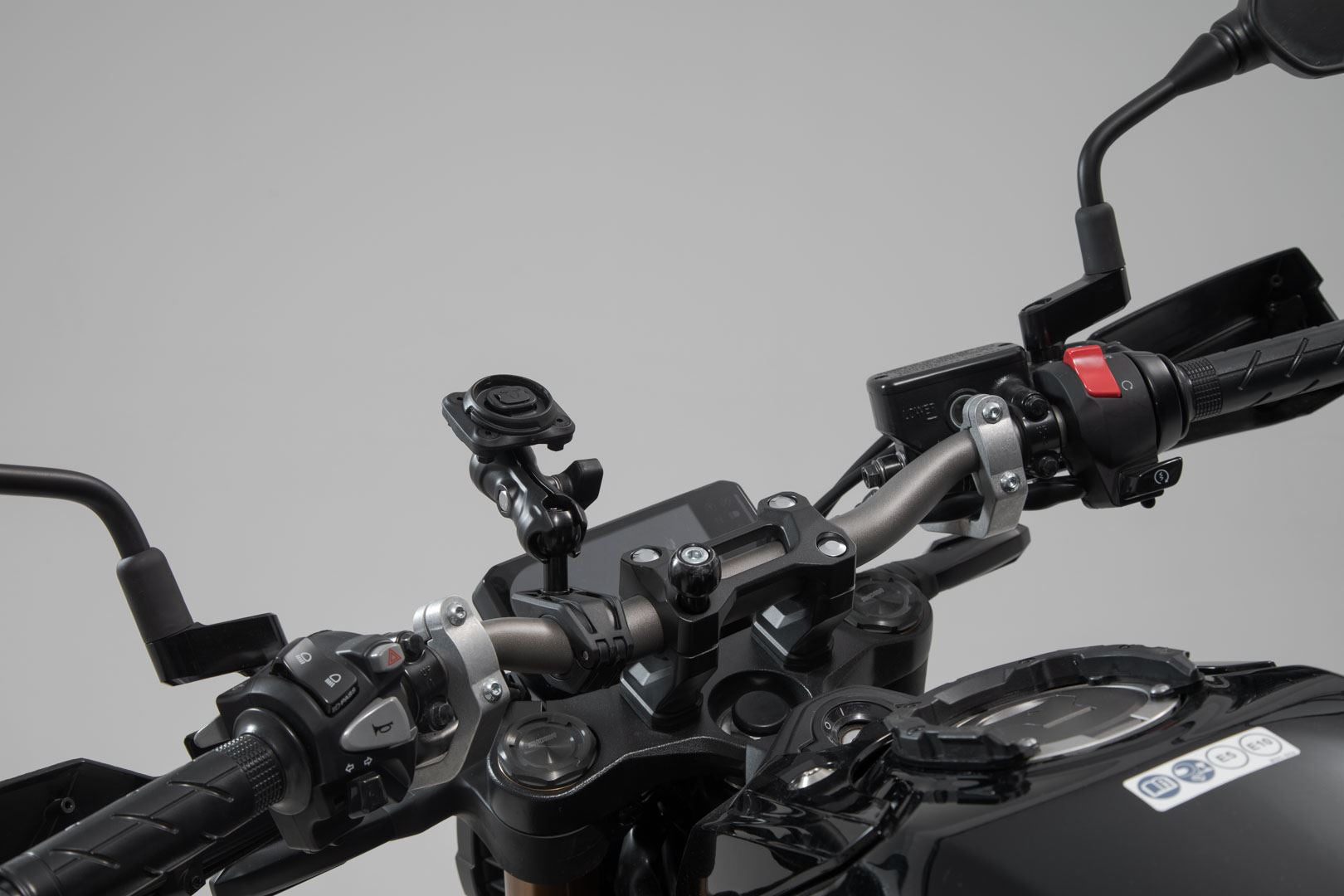

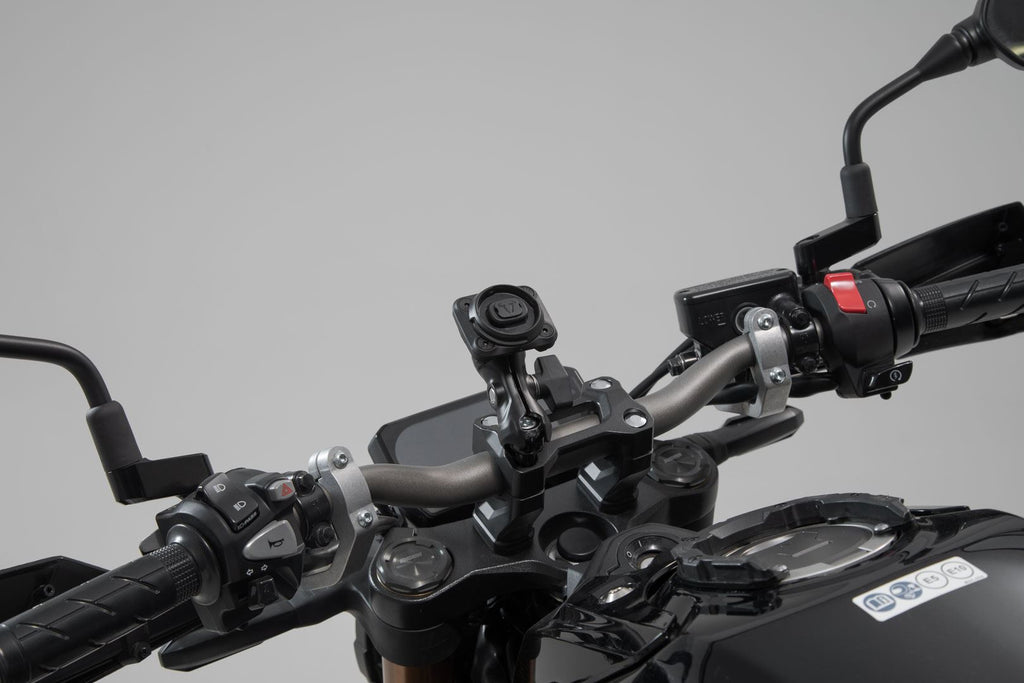

Our universal kit offers a variety of different attachment options on the motorbike: The included 1" ball can be mounted on a M6 or M8 thread, on a mirror thread holder or with a mounting clamp. The mounting clamp is designed for handlebars with a diameter of 22. 28 mm or 1". A pivoted socket arm makes positioning in the cockpit easy - so the display always remains in plain sight, without obstructing instrument view.
- Splash-proof and touch-compatible Phone Case pouch with sun visor
- For devices in portrait format
- Inner dimensions Phone Case: 83 x 171mm
- Outer dimensions Phone Case: 95 x 185mm
- Display window size Phone Case: 68 x 156mm
- T-Lock holder for quick attachment to the socket arm
- Balls and 2" socket allow for individual positioning
- Socket can be pivoted in two axes up to 90° or 45°
- 1" ball can be mounted on a M6 or M8 thread, on the mirror thread holder or with a mounting clamp
- Mounting clamp for handlebars with a diameter of 22. 28 mm or 1"

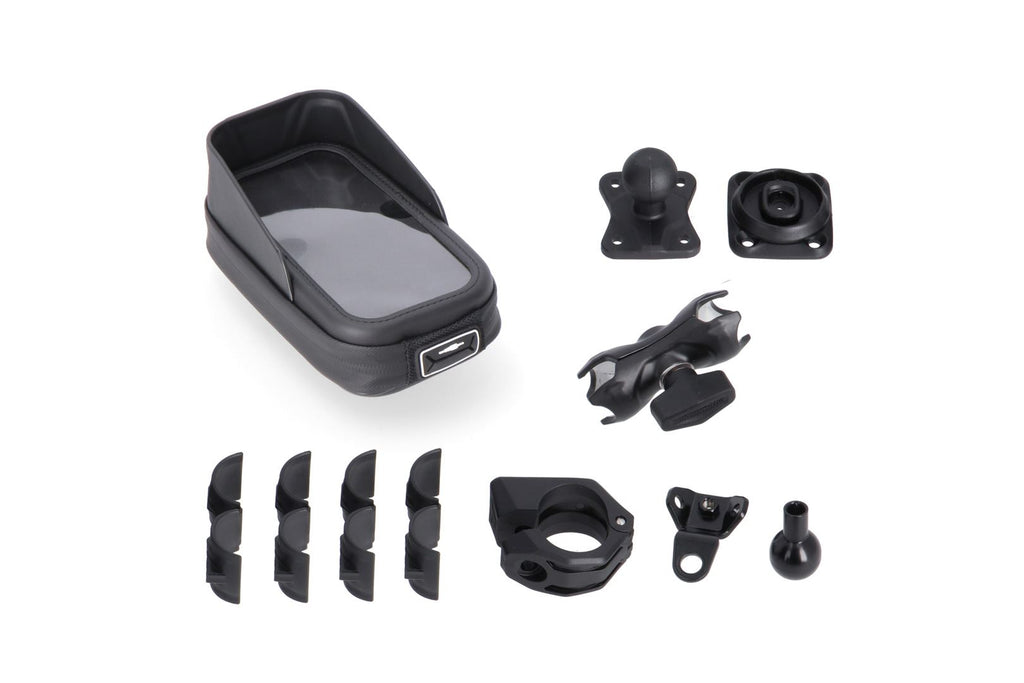

Included in delivery
- 1 x Phone Case
- 1 x Universal mounting clamp with rubber inserts
- 1 x Ball with M8 thread and M6 converter
- 1 x 2" socket arm
- 1 x Ball joint with mounting plate
- 1 x T-Lock holder
- Mounting instructions
- Mounting material
Details
- Total Weight: appr. 0,6 kg / appr. 1.4 lb
Note
- Whether or not the touch screen panel is fully functional depends on the device model (e.g. fingerprint sensor)
Mounting Instructions
